Project Description

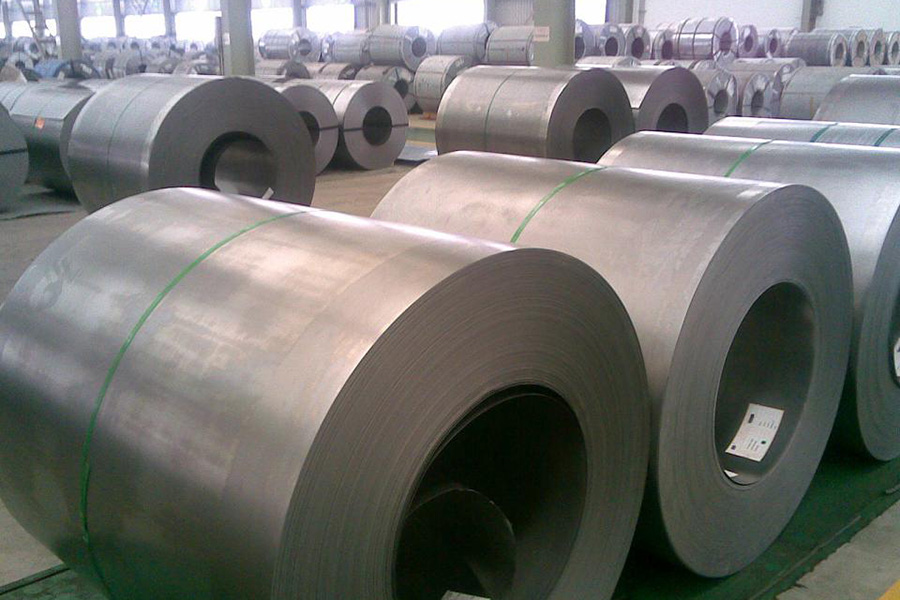

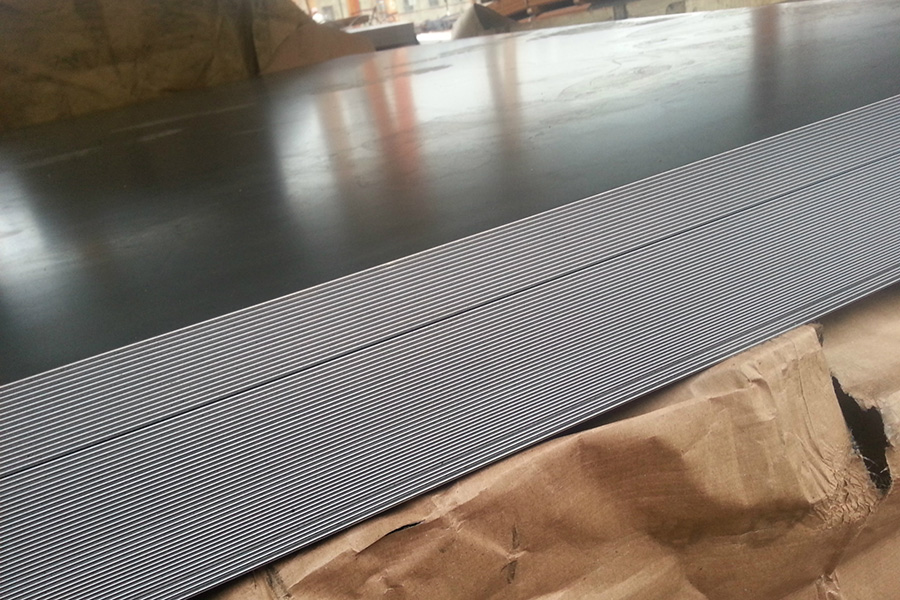

Cold Rolled Steel Coil has superb sheet shape and surface quality with good flatness and surface finish. The surface of the cold sheet is clean and bright and easy for coating.
The varieties of cold rolled steel sheet are widely used in:
- Galvanized Substrates
- Home Appliances
- Tubing
- Automobiles
- Building
- Enamels
- Other Industries
As a leading cold rolled steel coil (CR) manufacturer, Hengze Steel adheres to strict quality standards to produce our cold rolled steel coils. We guarantee our products meet our customer’s requirement.
Specifications
| Item Name | Cold Rolled Steel Coil |
| Thickness | 0.2-2.0mm |
| Width | 600-1500mm |
| Hardness | 50-71 (CQ Grade) |
| Hardness | 45-55 (DQ Grade) |
| Yield Strength | <270 (CQ Grade) |
| <240 (DQ Grade) | |
| Tensile Strength | 240-410 (CQ Grade) |
| 240-370 (DQ Grade) | |
| Elongation Percentage | 28 |
| 34 |

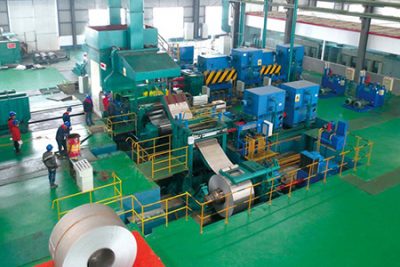

Production Line
The annual capacity of 1250mm cold rolled sheet production line is 200,000 tons while 1450mm’s is 250,000 tons. This production line is equipped with advanced detecting system of laser velocimeter imported from Japan. X-ray thickness gauge and shape meter etc. This machine have high rigidity rolling mill which could produce ordinary carbon steel, high-carbon steel and alloy steel. The specification is 0.15~1.5mm x 1250mm.
Quality Control
We have our own Physical & Chemical Testing Center Lab. to guarantee our product quality. Our test items & instrument fully meet international standards.

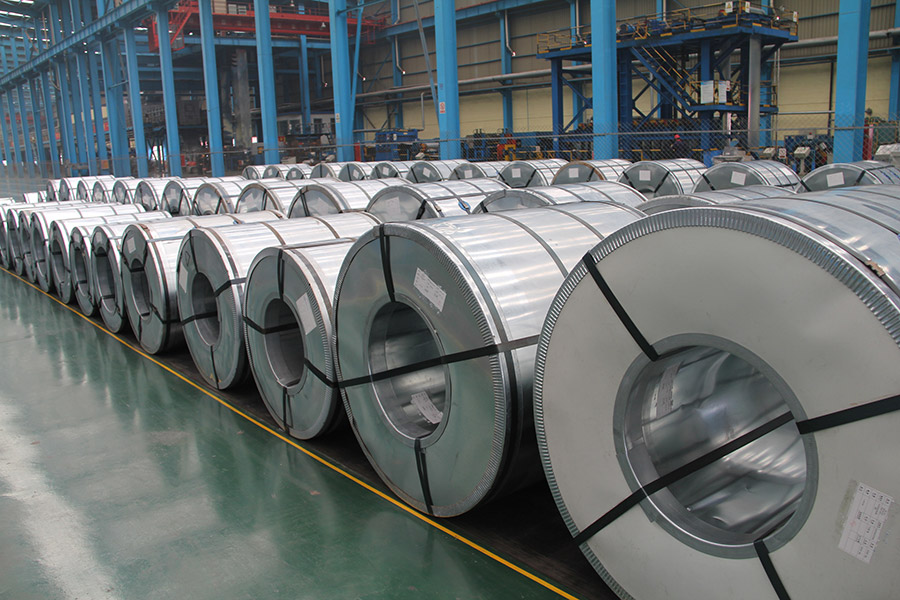

Packing Details
Standard Export Packing:
- 4 eye bands and 4 circumferential bands in steel
- Galvanized metal fluted rings on inner and outer edges
- Galvanized metal and waterproof paper wall protection disk
- Galvanized metal and waterproof paper around circumference and bore protection

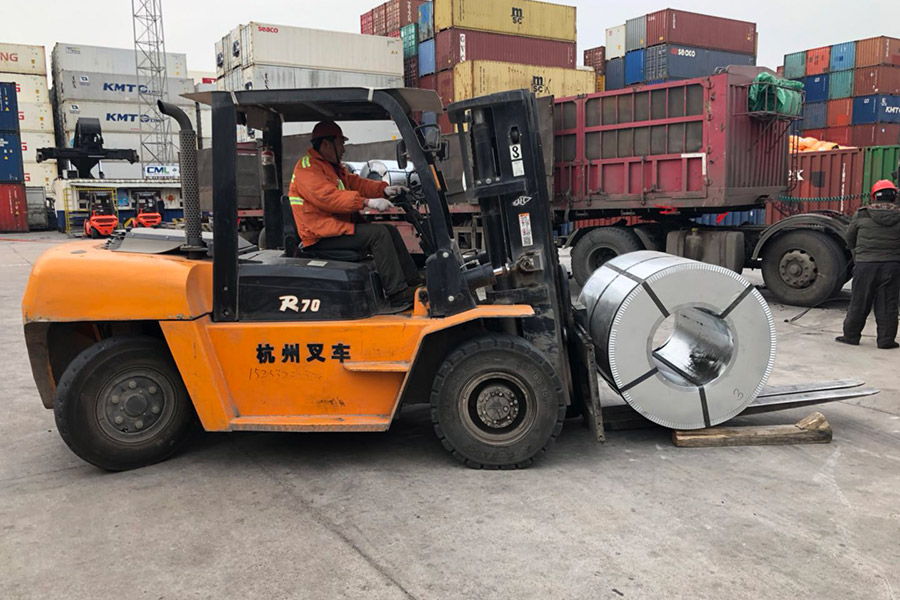

About the sea worthy packaging: extra reinforcement before shipment to ensure that the goods are safer and less damaged to customers.
