Project Description

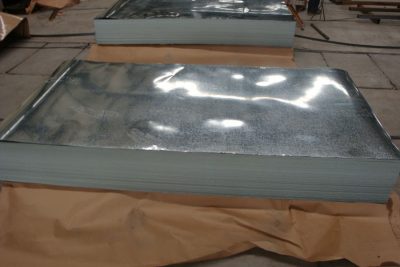

Hot Dipped Galvanized Steel Coil and alloying Galvanized Coil have excellent performance, possessing ideal comprehensive properties of corrosion resistance, formation and coating.
Galvanized steel (GI) are mainly used in building, automobiles, metallurgy, electric equipments and more.
- Building – roof, door, window, roller shutter door and suspended skeleton
- Automobiles – vehicle shell, chassis, door, trunk lid, oil tank, and fender
- Metallurgy – steel sash blank and color coated substrate
- Electric equipements – refrigerator base and shell, freezer, and kitchen equipment
As a leading galvanized steel coil manufacturer, Hengze Steel adheres to strict quality standards to produce our galvanized steel coils/sheets. We guarantee our products meet our customer’s requirement.
Specifications
| Technical Standard | ASTM DIN GB JIS3302 |
| Grade | SGCC SGCD or Customer’s Requirement |
| Type | Commercial Quality/DQ |
| Thickness | 0.13mm-4.0mm |
| Width | 600mm-1500mm |
| Type of Coating | Hot Dipped Galvanized |
| Zinc Coating | 30-275g/m2 |
| Surface Treatment | Passivation/skin pass/non-oiled/oiled |
| Surface Structure | Zero Spangle / Mini Spangle / Regular Spangle / Big Spangle |
| ID | 508mm/610mm |
| Coil Weight | 3-10metric ton per coil |
| Package | Standard export package or customized |
| Hardness | HRB50-71 ( CQ Grade ) |
| HRB45-55 ( DQ Grade ) | |
| Yield Strength | 140-300 (DQ Grade) |
| Tensile Strength | 270-500 (CQ Grade) |
| 270-420 (DQ Grade) | |
| Elongation Percentage | 22 (CQ Grade thickness less 0.7mm) |
| 24 (DQ Grade thickness less 0.7mm) |
Production Video

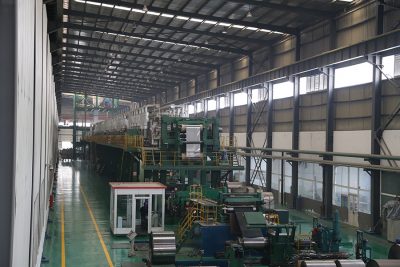

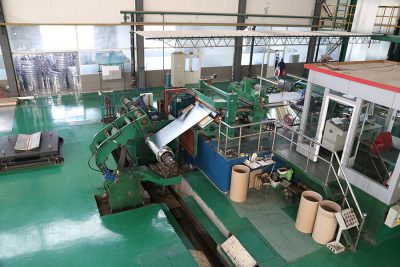

Production Line
The annual capacity of Galvanized Line is 320,000 tons. We adopt the UEC hot dip galvanizing process which is the most advanced and wildly used in the world. The main specification of product is 0.15~1.5mm X 800~1250mm.
We could manufacture high performance GI with high zinc coating, non-spangle, minium spangle, regular spangle or big spangle along with the advanced processing of oiled and skin-passed. The product can be used in building materials and electrical appliance.
Quality Control
We have our own Physical & Chemical Testing Center Lab. to guarantee our product quality. Our test items & instrument fully meet international standards.

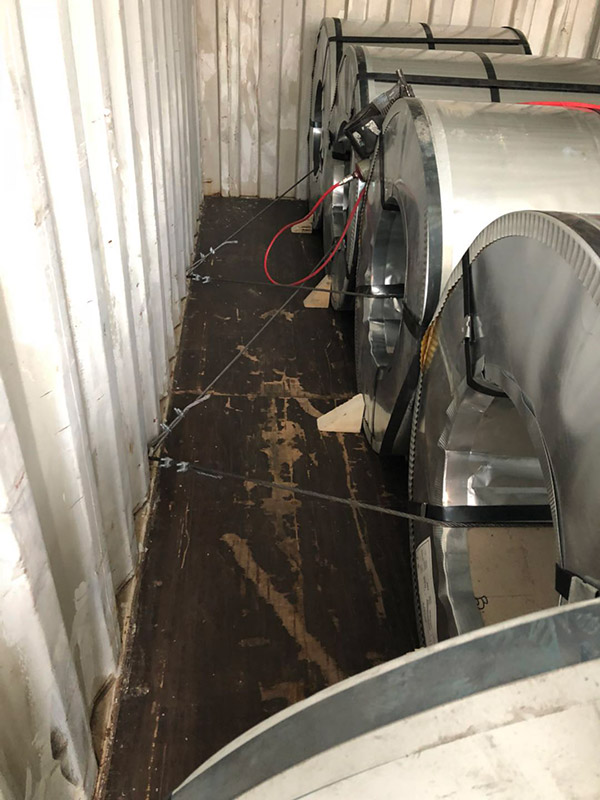

Packing Details
Standard Export Packing:
- 4 eye bands and 4 circumferential bands in steel
- Galvanized metal fluted rings on inner and outer edges
- Galvanized metal and waterproof paper wall protection disk
- Galvanized metal and waterproof paper around circumference and bore protection
About the sea worthy packaging: extra reinforcement before shipment to ensure that the goods are safer and less damaged to customers.
